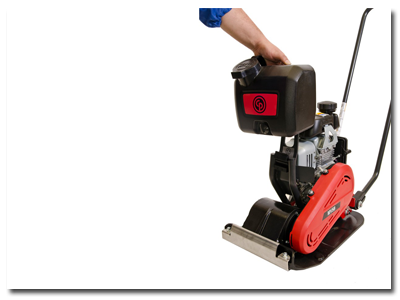

Detachable water tank
Water tank lifts off easily so there's no need to move the entire unit to a water source for refills. Large opening also makes it easy to refill..

Easy to maneuver
The lighter weight and smaller size make these units easy to turn and maneuver in a range of applications. Optional transport wheels make it easy for one person to move the unit around.

Consistent performance
Our units deliver high centrifugal force and feature a V-belt ventilation system for efficient operation.

High tech adjustable water delivery system
Unique system puts down a trail of water unlike any other in the industry. The valve control on top of the water tank allows the operator to control the flow of water.

Quality bottom plate
The high-quality bottom plate is designed to eliminate asphalt pick-up. It also allows for good water distribution and consistent speed on the asphalt.

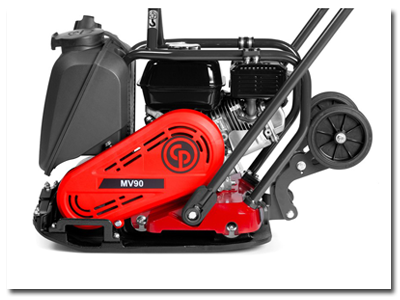

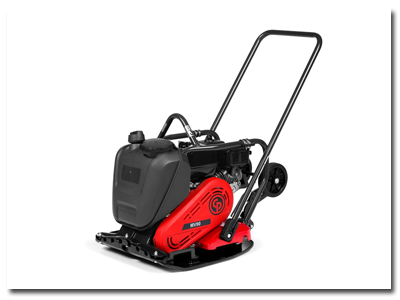

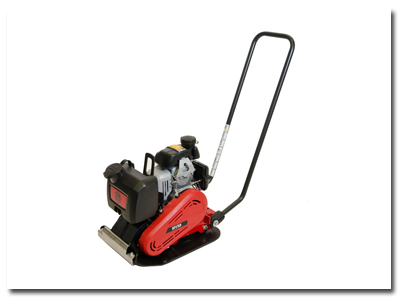

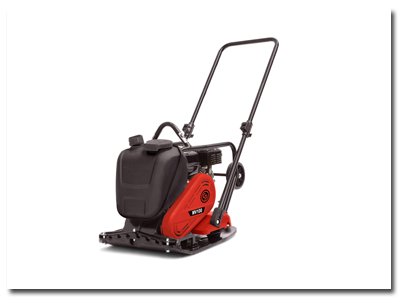

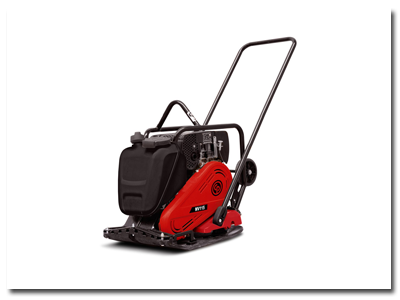

Our asphalt plate compactors
Our models are ideal for asphalt applications that require a rugged workhorse for uninterrupted production.

Quality asphalt work requires a compactor with a top-quality bottom plate. Our forward asphalt plates are specifically designed for compacting asphalt, offering a lighter weight, highly efficient solution. Our units are perfect for parking lots, bike paths, pothole repair and other demanding applications where uninterrupted production is required.

Applications
Used to compact asphalt for parking lots, bike paths, pothole repair and other demanding applications where the compaction of asphalt is required.
Designed to meet high demands from rental companies and contractors, the CP range offers speed, durability and efficiency.

Durable construction
A durable frame and belt cover protect vital engine parts for long-term reliability. Our MV units also feature a cast iron plate with tapered edges and ends, an integrated roll cage and lifting point, and a V-belt ventilation system.

FORWARD ASPHALT PLATES		MV 58A	MV 90 AT	MV 90 AT	MV 100 AT	MV 115 AT
Operating Weight	kg	63	90.7	94.1	108.3	117.5
Centrifugal Force	kN	10	14.6	14.6	16.7	16.7
Max Speed	m/min	25	27	24	25	25
Plate Width	mm	350	420	500	500	500
Engine		Honda® Petrol	Honda® Petrol	Honda® Petrol	Honda® Petrol	Honda® Petrol
Sound Power Level Guaranteed	dB(A)	100	102	102	104	104
Sound Pressure at Operators Ear	dB(A)	88	91	91	93	93
H/A Vibrations	m/s²	7.9	6	6	6	9.3
Part Number		3382 0005 53	3382 0000 84	4812 0991 32	4812 0991 28	4812 0991 29

A = Asphalt plate T = Transport wheels

Download Brochure: Compaction equipment leaflet Construction equipment range guide
