Reduced vibration
Ergonomic handles have large shock absorbers to reduce operator fatigue. The dynamical balanced engine design also dampens vibration..

Extreme durability
The bottom plate is made of Hardox 400 steel for excellent wear. All our units also feature a robust design with convenient service access.

Power and reliability
Models feature Honda gasoline or Hatz or Lombardini electric-start diesel engines.

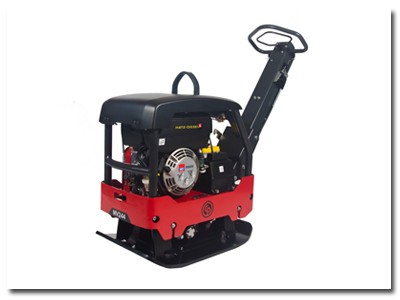

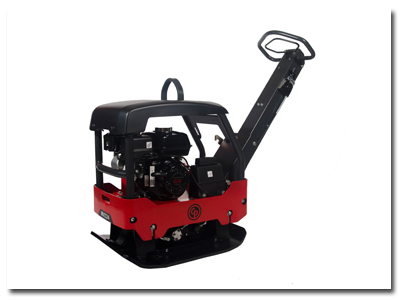

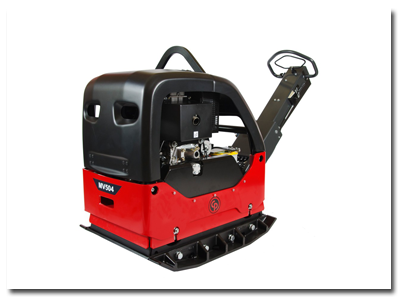

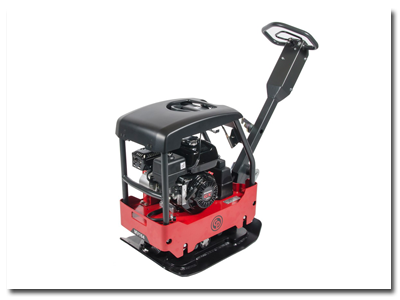

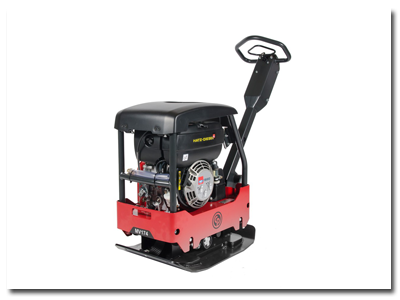

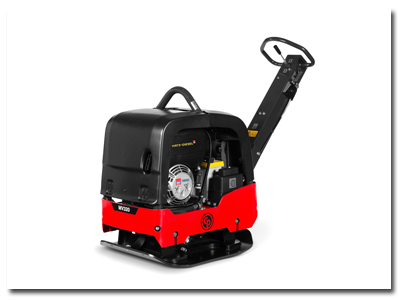

Our forward & reversible plate compactors
Our forward and reversible plates are used for compacting dirt, gravel and soil in a variety of applications.

Our forward and reversible plate compactors deliver excellent compaction power and speed in either direction. You can even back your way out of a trench while still compacting for enhanced productivity. Our units are built for tough conditions with a heavy-duty frame and quality components. Vibration-dampened handles also add operator comfort and safety.

Applications
Used for compacting dirt, gravel and soil in a variety of applications.

Smooth control
User-friendly controls allow smooth regulation of speed and compaction depth. Operators can change direction without removing their hands.

FORWARD & REVERSIBLE PLATES		MV 164	MV 174	MV 224	MV 244	MV 305	MV 320
Starter type		manual	manual	manual	electric	manual	electric
Operating Weight	kg	157	169.5	211	244	265	302
Centrifugal Force	kN	28	28	36	36	40	40
Max. Speed	m/min	22	22	23	22	25	25
Frequency	Hz	80	80	65	65	68	68
Plate Width	mm	450	450	500	500	600	600
Engine		Honda® Petrol	Hatz Diesel	Honda® Petrol	Hatz Diesel	Honda® Petrol	Hatz Diesel
Sound Power Level Guaranteed	dB(A)	108	108	106	108	108	108
Sound Pressure at Operator's Ear	dB(A)	82	84	84	85	92	94
H/A Vibrations m/s²	m/s²	2.3	3.5	3.5	3.4	2.4	1.7
Part Number		4812 0991 42	4812 0991 43	3382 0006 28	3382 0006 29	4812 0991 40	4812 0991 41

FORWARD & REVERSIBLE PLATES		MV 400	MV 430	MV 504	MV 504
Starter type		manual	manual	electric	electric
Operating Weight	kg	398	436	469.5	498.5
Centrifugal Force	kN	52	52	65	65
Max. Speed	m/min	25	25	30	30
Frequency	Hz	60	60	60	60
Plate Width	mm	650	650	550	700
Engine		Honda® Petrol	Lombardini® Diesel	Hatz Diesel	Hatz Diesel
Sound Power Level Guaranteed	dB(A)	108	108	109	109
Sound Pressure at Operator's Ear	dB(A)	93.2	94.5	96	96
H/A Vibrations m/s²	m/s²	2.5	2.1	2.5	2.5
Part Number		3382 0000 88	3382 0001 17	3382 0006 05	3382 0006 06
