Easy handling
All our models have a compact size that’s convenient to maneuver..

Reliable performance
Our models feature Honda gasoline and Hatz diesel engines. They also deliver high centrifugal force for effective compaction.

Low maintenance
Lifelong lubrication on the eccentric element makes maintenance easy with longer service intervals. Double-sealed, non-contact bearings also reduce wear.
All models except MV 82.

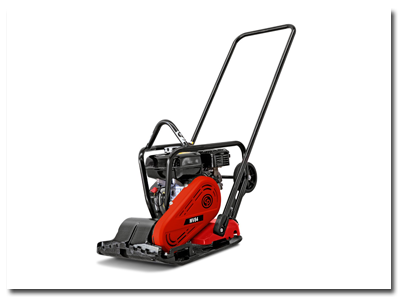

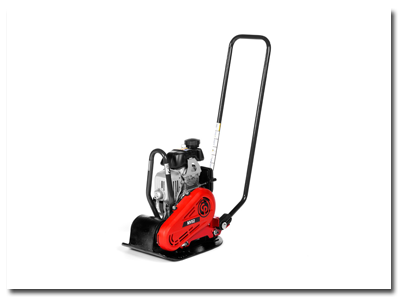

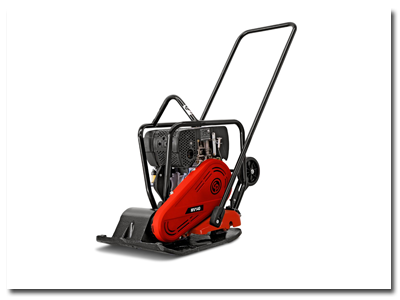

Our plate compactors
Our forward soil plates are built for the day-to-day demands of rental companies and contractors. They're suitable for compacting dirt, gravel, soil, asphalt and more.

When it comes to equipment, durability and ease of use are critical. Our forward soil plates give you both, with rugged components and a compact, maneuverable design. The're the right combination for speed and efficiency in a wide range of applications - including bike paths, sidewalks, landscaping and pothole repair jobs.

Applications

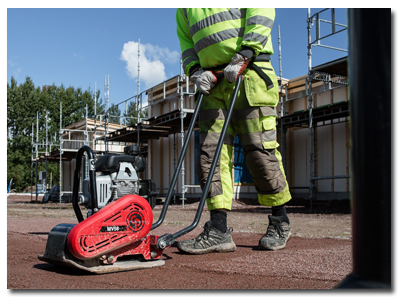

Used for compacting dirt, gravel, soil and more. Typical applications are parking lots, bike paths, landscaping, repairs and a variety of similar jobs.

Durable construction

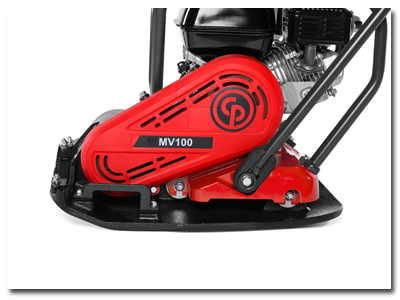

A durable frame and belt cover protect vital engine parts for long-term reliability. Our MV units also feature a cast iron plate with tapered edges and ends, an integrated roll cage and lifting point, and a V-belt ventilation system.

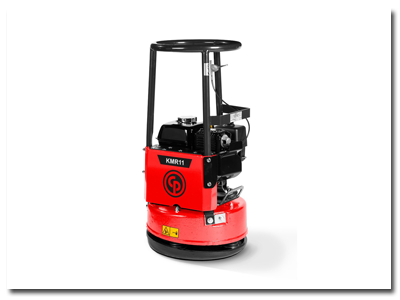

FORWARD SOIL PLATES		MV 52	MV 82	MV 84 T	MV 100	MV 135	MV 140	KMR 11
Operating Weight	kg	51.4	75.5	85.3	94.5	131.7	138.5	96.4
Centrifugal Force	kN	8.4	18	19.4	16.7	19.8	19.8	16
Max Speed	m/min	24	25	33	25	22	22	22
Plate Width	mm	320	460	420	500	500	500	450
Engine		Honda® Petrol	Honda® Petrol	Honda® Petrol	Honda® Petrol	Honda® Petrol	Hatz Diesel	Honda® Petrol
Sound Power Level Guaranteed	dB(A)	100	104	103	104	104	104	104
Sound Pressure at Operators Ear	dB(A)	89	92	91	93	95	93	92
H/A Vibrations	m/s²	6.9	16.5	6.7	6.	5.4	6.8	6.1
Part Number		4812 0991 25	3382 0002 74	4812 0991 27	3382 0000 85	4812 0991 30	4812 0991 31	3382 0000 83

T = Transport wheels

Download Brochure: Compaction equipment leaflet Construction equipment range guide
