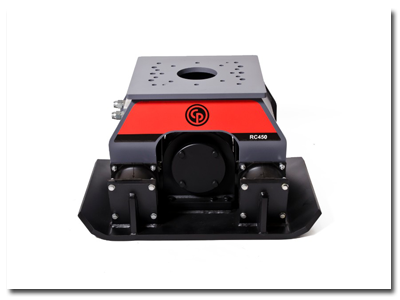

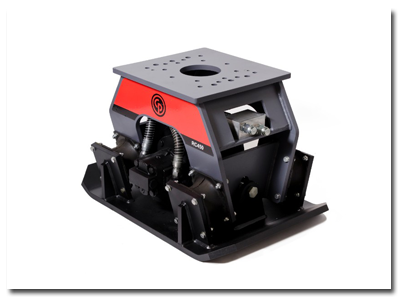

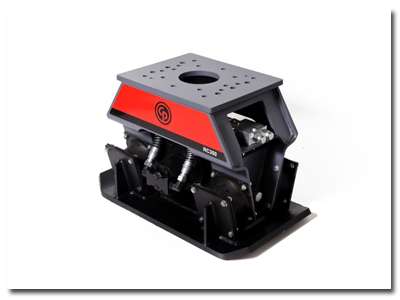

Compactors
For excavators of 1-40 tons
Get your job done efficiently
High performance, a reliable overload protection and low maintenance make our compactors for excavators ready to get your job done..
High performance
The high compaction frequency combined with the high vibrating force make quick work of most jobs, including slope compaction
Attach and go
RC excavator compactors are instantly ready for use: no special installation is required
Less stress
The housing is offset by 15%. As a result, the force is better distributed across the plate, which reduces stress on the compactor during operation..
Overload protection
The integrated flow rate and pressure control ensures safety and saves time when using the compactors on different carriers.
Less maintenance
The oil bath around the shaft bearing ensures continuous greasing, while the AutoLube system eliminates the need for regular manual greasing.
Smart options
Continuous rotation device for easy positioning and high productivity. And our new backfill blades level the path and make your work even smoother
The solution for a full range of tough jobs

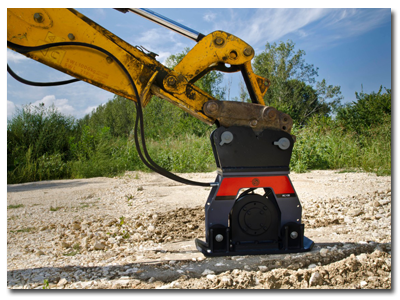

RC compactors can be used in demanding jobs such as slope compaction, trench compaction, road repair, side development, waste compaction or piling.
For a full range of tough jobs
Our hydraulic compactors with added features and options for you to get your jobs done.
Use our compactors in slope compaction, trench compaction, road repair, side development, waste compaction or piling.
| Model |
|
RC 150 |
RC 350 |
RC 450 |
RC 850 |
RC 1050 |
| Carrier weight class* |
t |
1-3 |
3-8 |
4-9 |
9-20 |
20-40 |
| Serviceweight** |
kg |
160 |
320 |
430 |
880 |
1,130 |
| Height |
mm |
486 |
623 |
622 |
764 |
786 |
| Plate dimensions W*L |
mm |
295*721 |
475*846 |
610*929 |
710*1,272 |
864*1,364 |
| Plate coverage |
m |
0.17 |
0.31 |
0.40 |
0.68 |
0.9 |
| Vibrating force |
t |
1.4 |
2.3 |
3.6 |
7.3 |
10.5 |
| Vibrating frequency |
n/min |
2,100 |
2,100 |
2,200 |
2,200 |
2,200 |
| Operating pressure |
bar |
150 |
150 |
150 |
150 |
150 |
| Oil flow |
l/min |
30 |
57 |
76 |
114 |
151 |
Motor oil quantity
(in rotor housing) |
l |
0.6 |
0.8 |
0.9 |
3.7 |
3.7 |
| Part number |
|
1826 1018
07 |
1826 1018
08 |
1826 1018
09 |
1826 1018
10 |
1826
1018 11 |
Any variances must be agreed with Chicago Pneumatic and/or the carrier manufacturer prior to attachment.
**Compactor with medium-sized adapter.

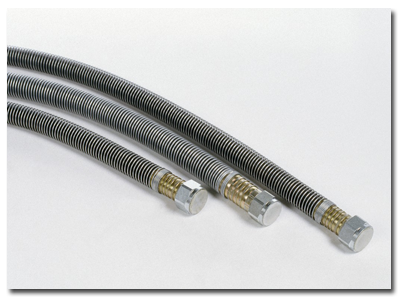

Connection hoses
Our connection hoses are designed to withstand the strains of demolition work.
They are protected agains chafing by a spiral steel wire. We use special fittings to extend the life of the hoses. All hose couplings are hardened to warrant maximum stability.
Option: rotation device as add-on kit
Better positioning, faster work process.
| Model |
Rotation device |
Weight (kg) |
Connection kits |
| RC 350 |
1826 1016 44 |
80 |
3376 6960 37 |
| RC 450 |
1826 1016 44 |
80 |
3376 0670 37 |
| RC 850 |
1826 1016 44 |
80 |
3376 6980 37 |
| RC 1050 |
1826 1016 45 |
155 |
3376 6990 37 |
| Model |
Backfill blade kit |
| RC 150 |
3376 6951 08 |
| RC 350 |
3376 6961 08 |
| RC 450 |
3376 6971 08 |
| RC 850 |
3376 6981 08 |
| RC 1050 |
3376 6991 08 |
|
|
