Oil flow dividers

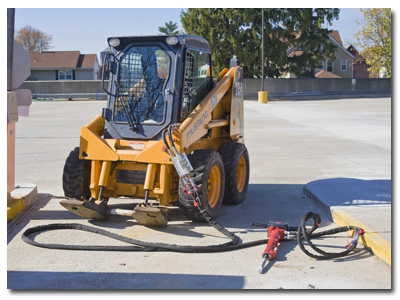

Run tools from hydraulically powered carriers
Regulate
It regulates output flow to the factory preset flow, independent of input flow
Limit
It limits the maximum pressure setting in the tool's outlet circuit, independent of the carrier settings.
Check
It checks that the oil direction to the connected tools is correct and block outlet to ensure it is correctly connected to the carrier

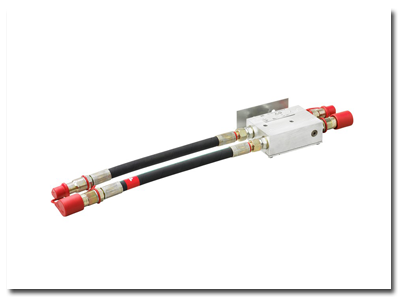

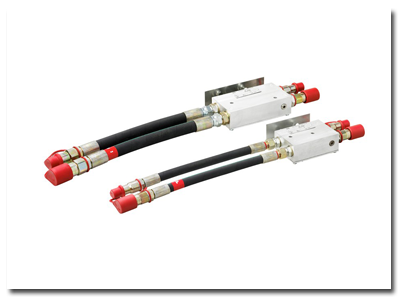

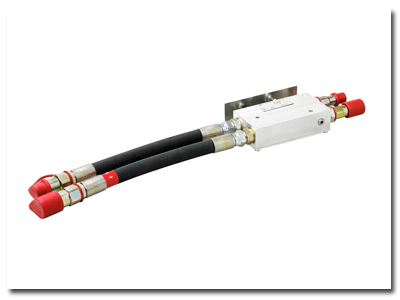

OFD Oil flow divider
Our oil flow dividers reduce flow and pressure, allowing you to run tools from hydraulically powered carriers. They contribute to safe, easy tool operation from any excavator or skid steer outlet. An extension hose is used to connect the oil flow divider to the tool.
| Oil flow divider |
|
OFD 5 |
OFD 8 |
| Max. oil flow |
l/min |
60 |
120 |
| Regulated oil flow |
l/min |
20 ¹ |
30 ² |
| EHTMA class |
|
C |
D |
| Part number |
|
1801 1633 19 |
1801 1643 18 |
¹ Can be adjusted between 20-25 l/min. ² Can be adjusted between 25-38 l/min.
|
|
