Submersible water pumps
These tools are really tough
Good performance
Impressive performance in relation to size and weight
Easy handling
Delivered completely with 10 m discharge hose with snaptite coupler
Durable
Rugged construction for continuous operation
Water pumps
Our hydraulic submersibles are a range of rugged pumps for continuous pumping of water on building sites, in flooded excavations and cellars, and similar situations. Performance is impressive in relation to size and weight.

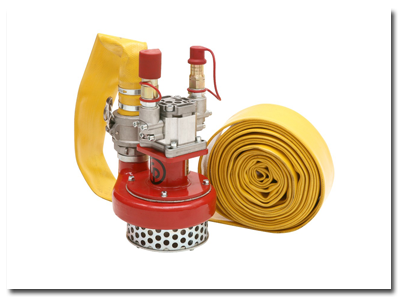

Our 2 inch pump handles dirty water containing small stones and debris up tp 10 mm.

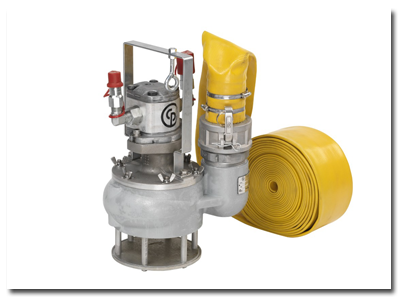

Our 3 inch CP submersible trash pump can handle stone and debris in the slurry up to 60 mm in diameter.
Cooled and lubricated by the hydraulic oil, they can be left to run dry without damage.
Applications

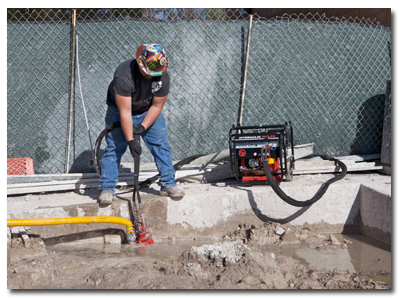

Used for pumping water from building sites, from flooded excavations and cellars, and in similar situations
| HYDRAULIC SUBMERSIBLE WATER PUMPS |
|
WAP 2 |
WAP 3 |
| Weight |
kg |
10.8 |
13 |
| Height |
mm |
345 |
450 |
| Width |
mm |
225 |
300 |
| Oil Flow |
l/min |
18-24 |
26-38 |
| Working Pressure |
bar |
100 |
140 |
| Pump Head Max |
m |
25 |
32 |
| Pump Flow Max |
l/min |
84 |
1,920 |
| Discharge |
|
2" |
3" |
| EHTMA Class |
|
C |
D |
| Solids Handling Up To |
mm |
10 |
60 |
| Part Number |
|
1806
1014 41 |
1806
1014 42 |
|
|
