Core drill
Powerful, hand-held, rotary drill
Good control
Self-closing twist throttle operation for one hand control
Operator friendly
Breast-plate for operator comfort when drilling horizontally
Speed control
Governor-controlled motor holds speed at heavy loads while increasing power
Our core drill

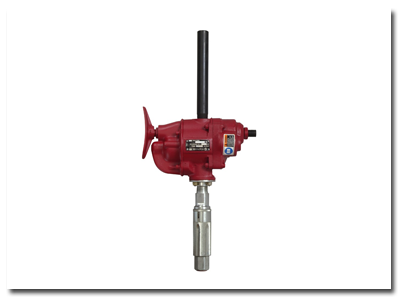

Our CP 0315 Core Drill is a powerful hand- held rotary drill with a threaded output shaft onto which a water swivel and core bit can be fitted. It was originally designed for hand cutting holes in reinforced concrete junction boxes for fiber optic cables. It is now being used in many sectors of the construction industry for hole cutting.
Applications
Used for cutting holes in concrete, brick work, stone and in applications where access or position restricts the use of rig-mounted units
| PNEUMATIC CORE DRILL |
|
CP 0315 |
| Weight |
kg |
6 |
| Length |
mm |
530 |
| Power |
kW (hp) |
0.9 (1.2) |
| Free Speed |
rpm |
750 |
| Drilling Diameter |
mm |
50 -150 |
| Air Consumption |
l/s |
20 |
| Air Inlet |
|
1/2" BSP |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
7.4 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
77 |
| Part Number |
|
T024733 |
|
|
