CP CONCRETE EQUIPMENT - DRIVE UNITS
Chicago Pneumatic - Concrete Equipment
CP Concrete Equipment - Drive Units
CP Concrete Equipment - Drive Units
CP Concrete Equipment - Drive Units

Drive Units

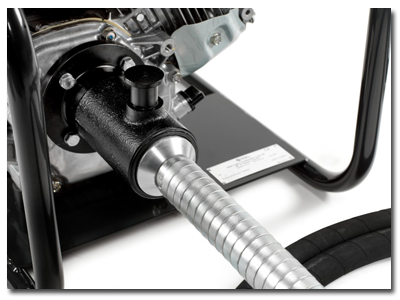

Quick-release coupling to connect pokers easily


Heavy duty construction
Both units feature solid frame protection with a protective plate to shield the engine. Gasoline unit has an easy-to-reach on/off switch.

Reduced noise and vibration
Engine is mounted on rubber element to isolate vibration.

Quality engines

Honda® gasoline and Lombardini® diesel engines provide reliable performance. The Honda engine includes an oil alert for easy maintenance.

CP Concrete Equipment - Drive Units
CP Concrete Equipment - Drive Units

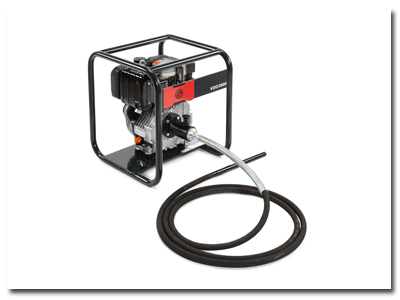

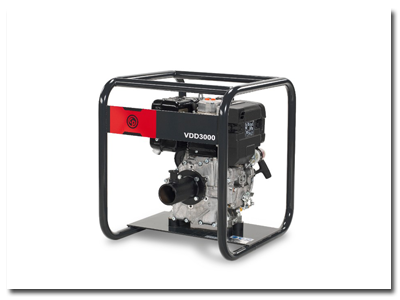

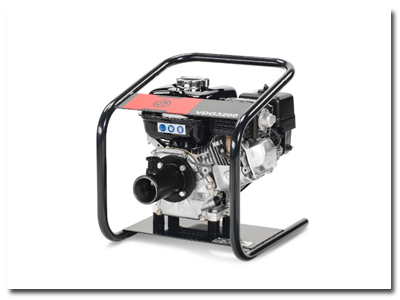

Gasoline or diesel drive unit
Our diesel and gasoline drive units are well suited for providing portable power to VPM mechanical pokers.

These models feature quality engines and heavy-duty construction for reliable performance in tough jobsite conditions.


Applications
These models are used to provide portable power for VPM mechanical pokers.

VDD 3000 VDG 3200
Engine - Lombardini 15LD225 Honda GX 160
Type - Diesel Gasoline
Power kW (hp) 3.0 (4.1) 3.2 (4.4)
Speed rpm 2 900 3 600
Weight kg 45 30
Sound Power dB(A) 79 75.7
Part Number 4812 0515 70 4812 0515 69

Download Brochure:

Concrete equipment
Construction equipment range guide
