Easy handling
Plug it to a wall socket, push the button, start work straight away

Three functions push button
Start, stop & reset. All protections built-in into electronic housing

2 versions
- standard 5m hose for walls and beams etc...
- de-vibrated E-version for truly low H/A Vibrations for flooring

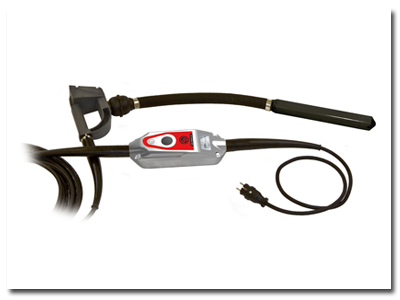

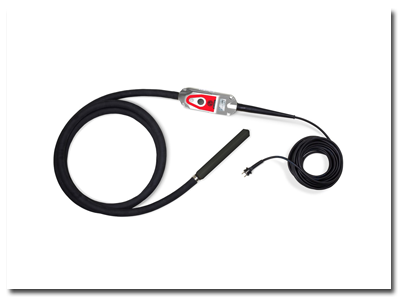

VEKTOR pokers
VEKTOR-series of our easy-to-handle electronic concrete vibrators. The pokers include advanced technology that monitors amperage draw and automatically adjusts the poker-head's vibration amplitude to prevent blockages by rebars. For ease of operation and enhanced safety, the pokers come equipped with a 3-function one-push button and automatically shut-off operation when not being supervised.

Applications
They are suited for a wide range of applications, including columns, beams, walls, floors, bridges, tunnels, foundations, retaining walls, parking, harbors, precast forms and pre-slab forms.

ELECTRONIC POKERS		VEKTOR 12K40	VEKTOR 12K48	VEKTOR 12K56	VEKTOR 12K65
Tube Diameter	mm	40	48	56	65
Hose length	mm	5	5	5	5
Cable length	m	15	15	15	15
Converter dimensions L x W x H	mm	300 x 100 x 80
H/A Vibrations	m/s²	3.81	2.47	5.87	4.62
Radius of Action		12 x Ø	12x Ø	12 x Ø	12 x Ø
Consumption	(A) 230V/115V	2.5/5	4.5/9	6.4/12.8	10
Part number	230V-1-50/60HZ	4812 0521 27	4812 0521 28	4812 0521 29	4812 0521 30
Part number	115V-1-50/60Hz UK	4812 0521 31	4812 0521 32	4812 0521 33	-

E-version for truly low H/A Vibrations

ELECTRONIC POKERS		VEKTOR 12K-E28	VEKTOR 12K-E40	VEKTOR 12K-E48	VEKTOR 12K-E56
Tube Diameter	mm	28*	40	48	56
Hose length	mm	0.5	0.5	0.5	0.5
Cable length	m	15 + 15	15 + 15	15 + 15	15 + 15
Converter dimensions L x W x H	mm	300 x 100 x 80
H/A Vibrations	m/s²	0.6	0.6	0.55	0.53
Radius of Action		12 x Ø	12 x Ø	12 x Ø	12 x Ø
Consumption	(A) 230V/115V	2.5/5	4.5/9	6.4/12.8	10
Part number	230V-1-50/60HZ	4812 0521 37	4812 0521 38	4812 0521 39	4812 0521 40
Part number	115V-1-50/60Hz UK	-	4812 0521 41	4812 0521 42	4812 0521 43

Download Brochure: Concrete equipment Construction equipment range guide
